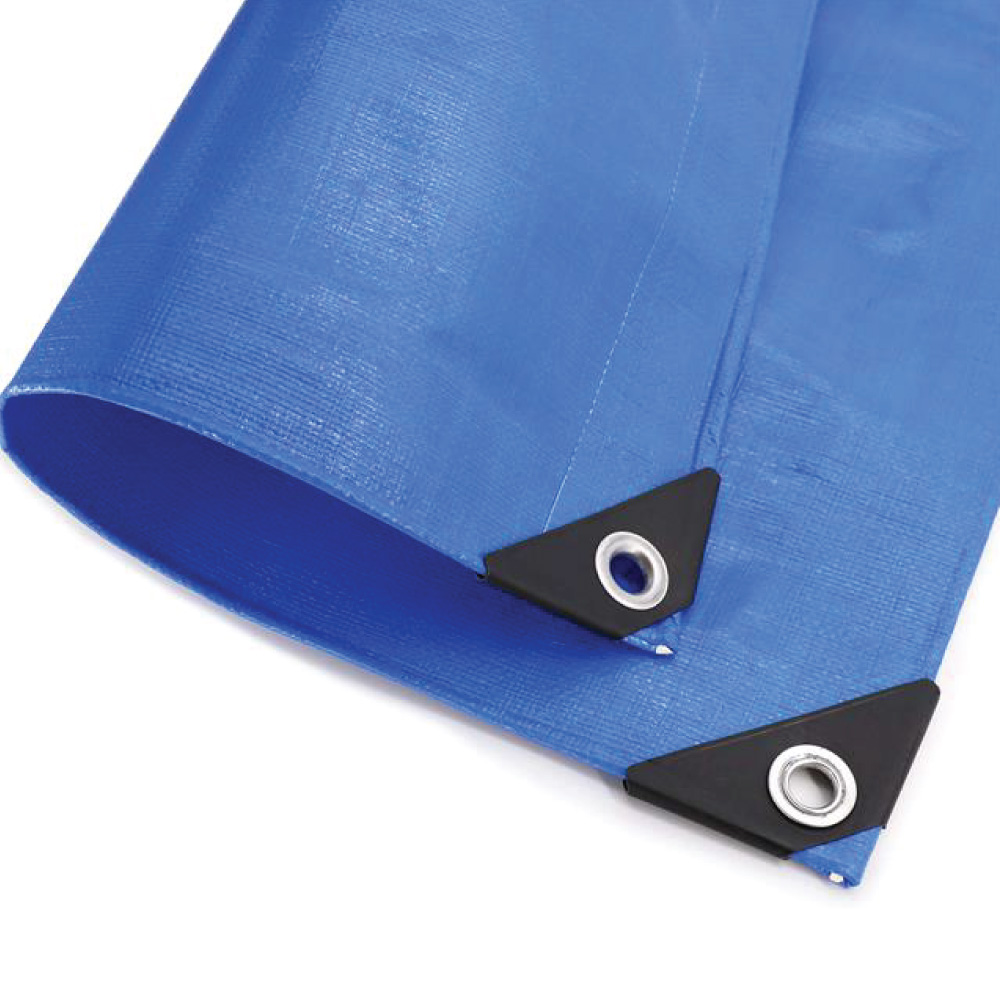

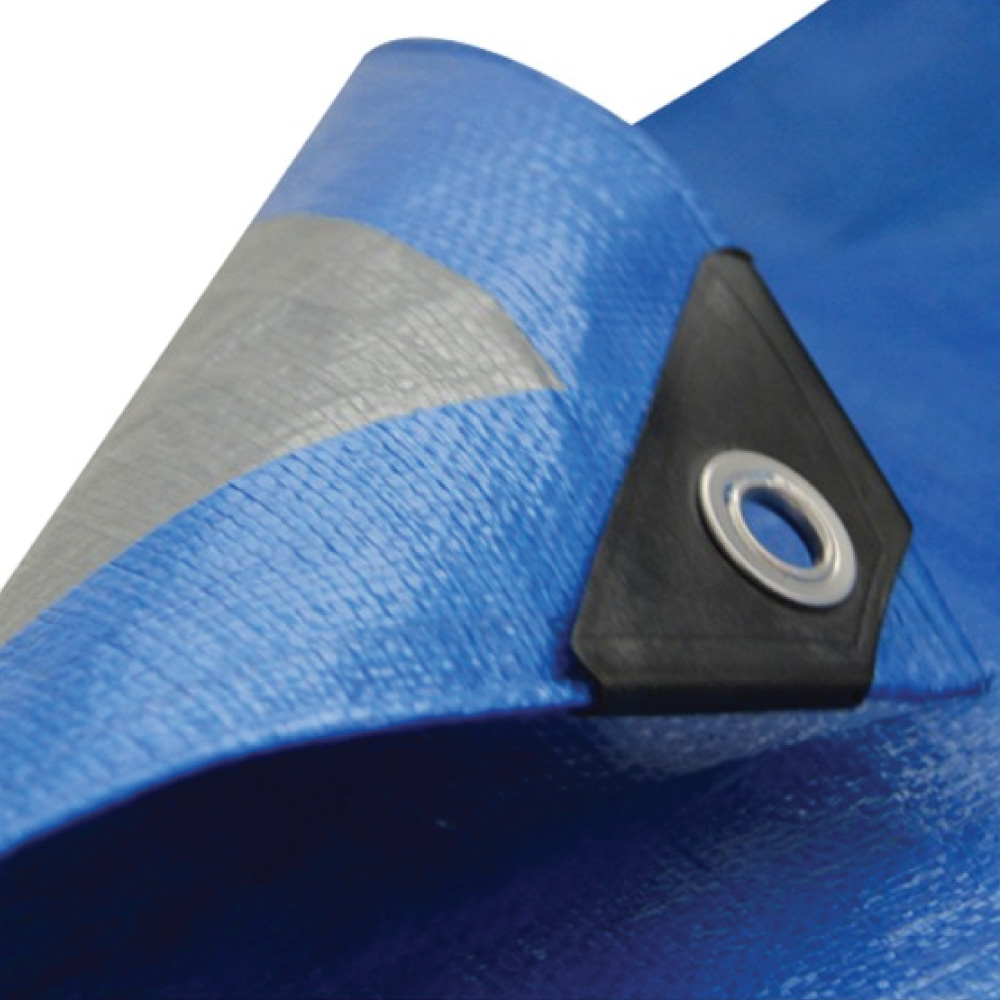

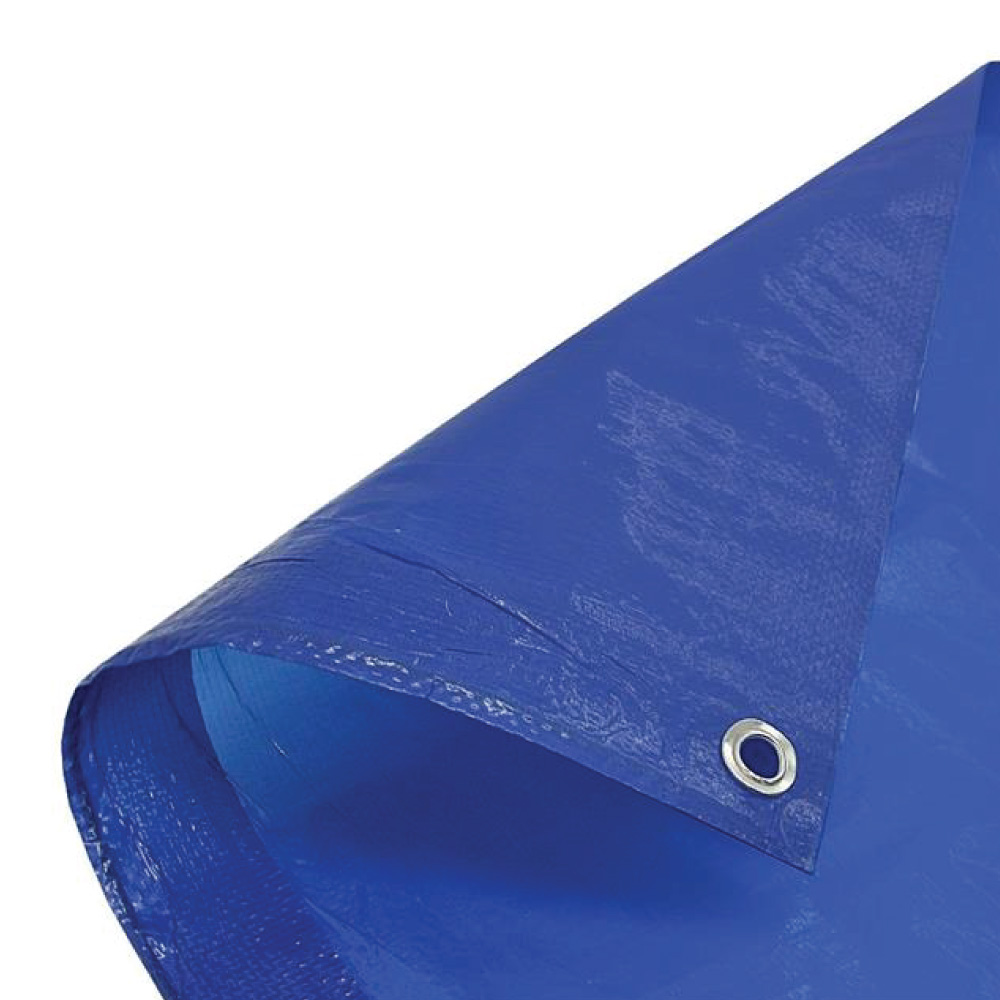

    PE Tarpaulin

    • Material: Polyethylene
    • Weight: 120 gr/m² / 350 gr/m²
    • Size: Width 200 cm / Length 100m

    Datasheet
    Category: Tags: ,

    About Product

    PE Tarpaulin is usually having 120gr/sqm to 340/sqm weight. Any dimension with reinforced edges and eyelets can be done according to our customers’ demands as well as we provide this material as rolls. Usually, we keep in stock as 2mt width and 100mt length. The most common sizes are as below;

    • 4*6mt
    • 6*8mt
    • 8*10mt
    • 10*10mt
    • 12*15mt

    NOTE: ANY DIMENSION AS PER CUSTOMERS’ REQUEST CAN BE PRODUCED.

    Documents

    180 GSM Awning Fabric DOWNLOAD
    200 GSM Awning Fabric DOWNLOAD

    Technical Data

    180 GSM Awning Fabric
    Technical Specifications Testing Method Unit Warp Weft Tolerances
    Raw Material – – HDPE HDPE –
    Yarn / 10cm ISO 7211-2 10/cm 55 60 ±1
    Denier ISO 2060 Td. 900 900 ±%5
    Yarn Width – mm 2 3 ±%5
    Tensile Strength – kg/5cm 85 80 ±%5
    Elongation Resistance ISO 5081 % 15 13 min
    U.V – % 1 min
    Fabric Weight ISO 3081 gr/m² 120 ±%2
    Coating Weight – gr/m² 80 ±%5
    200 GSM Awning Fabric
    Technicial Specifications Testing Method Unit Warp Weft Tolerances
    Raw Material – – HDPE HDPE –
    Yarn / 10cm ISO 7211-2 10/cm 55 60 ±1
    Denier ISO 2060 Td. 900 900 ±%5
    Yarn Width – mm 2 3 ±%5
    Tensile Strength – kg/5cm 85 80 ±%5
    Elongation Resistance ISO 5081 % 15 13 min
    U.V – % 1 min
    Fabric Weight ISO 3081 gr/m² 120 ±%2
    Coating Weight – gr/m² 80 ±%5
